Fixed displacement bent axis axial-piston pumps
|
Fixed displacement bent axis axial-piston pumps are
implied in hydraulic systems to transform the mechanical power of
the the drive shaft into the hydraulic power. Pump flow is
proportional to rotation speed and displacement. Pumps operate in
open and closed curcuit systems. The pumps are equipped with splines
shafts, and can be of left or right rotation.
Pumps are produced acc. to state standard ТУ У
29.1-05786100-010:2007
|
Technical specifications
Displacement
Code |
112 |
56 |
Rated Displacement, |
cm3 |
109 |
56 |
Maximum Flow, |
l/min |
155,5 |
79 |
Maximum Pressure in High Pressure Line, |
MPa |
35 |
Rated Pressure in High Pressure Line, |
MPa |
20 |
Maximum Case Pressure, |
MPa |
0,25 |
Speed, |
min-1 |
|
rated |
|
1500 |
maximum |
|
1920 |
minimum |
|
400 |
Rated Power, |
kW |
70 |
40,2 |
Weight (without fluid) |
kg |
30 |
20 |

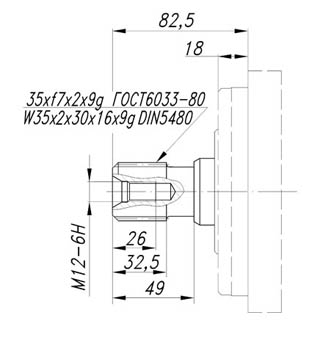

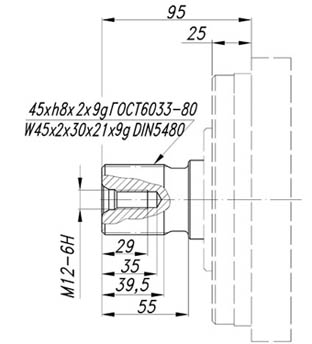

Shaft options
Code
А1 |
Code
А2 |
|
|
Code
B1 |
Code
B2 |
|
|
| |
